SEALEVEL | SeaIO

SeaI/O-410N-OEM

Now includes NABL Calibration Certificate.
Rs. 28956.00

The SeaI/O-410N-OEM adds 16 optically isolated inputs and 16 Reed relay outputs to your SeaI/O network. It’s compatible with all SeaI/O base units (Ethernet, USB, RS-485, RS-232), connecting easily via RS-485..

Quantity:
- +
Product added to cart successfully
  • Detail
  • Special Features
  • Specification

The SeaI/O-410N-OEM is a versatile expansion module that adds 16 isolated inputs and 16 Reed relays to any SeaI/O network. It connects via RS-485 and supports line conditioning for optimal performance. The unit can be connected to multiple modules, creating a distributed network.

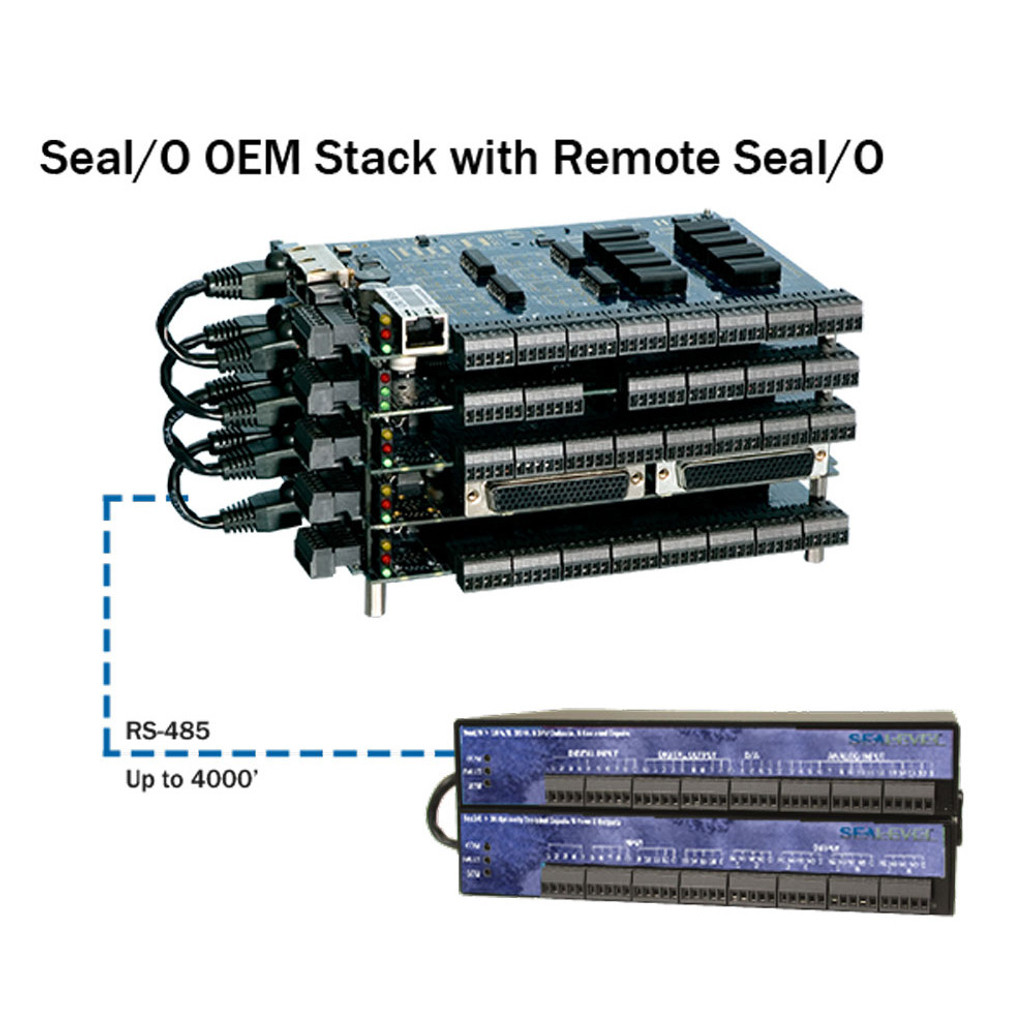

The expansion module comes with metal standoffs and an interconnect cable for stacking multiple units together and cascading RS-485 signals and power across modules. The RJ45 pass-through connectors allow for easy interconnection, ensuring seamless communication across your network.

This module is powered by a 9-30VDC source and can be used for various industrial and automation applications.

  • 16 Optically Isolated Inputs – Protects your system from voltage transients and ground loops.

  • 16 Reed Relay Outputs – Long-life, fast response, and ideal for switching low-current devices.

  • RS-485 Communication – Easily integrates into your existing system with RS-485 interface.

  • Stackable Design – Modules can be stacked together using metal standoffs and interconnect cables for easier wiring.

  • Flexible Cabling Options – Use RJ45 connectors or removable screw terminals.

  • Supports Multiple Interfaces – Works with Ethernet, USB, RS-485, RS-232 base units.

Parameter Details
Model Number SeaI/O-410N-OEM
Host Interface RS-485
Input Type 16 Optically Isolated Inputs
Output Type 16 Reed Relay Outputs
Power Requirement 9-30 VDC @ 1.4W
Operating Temperature 0°C to 70°C (32°F to 158°F)
Storage Temperature -50°C to 105°C (-58°F to 221°F)
Dimensions 7.5 (L) x 5.0 (W) x 0.8 (H)
Humidity Range 10-90% Relative Humidity/Non-Condensing
# of Inputs 16
# of Outputs 16
Family SeaI/O
Board/Enclosure Board only
